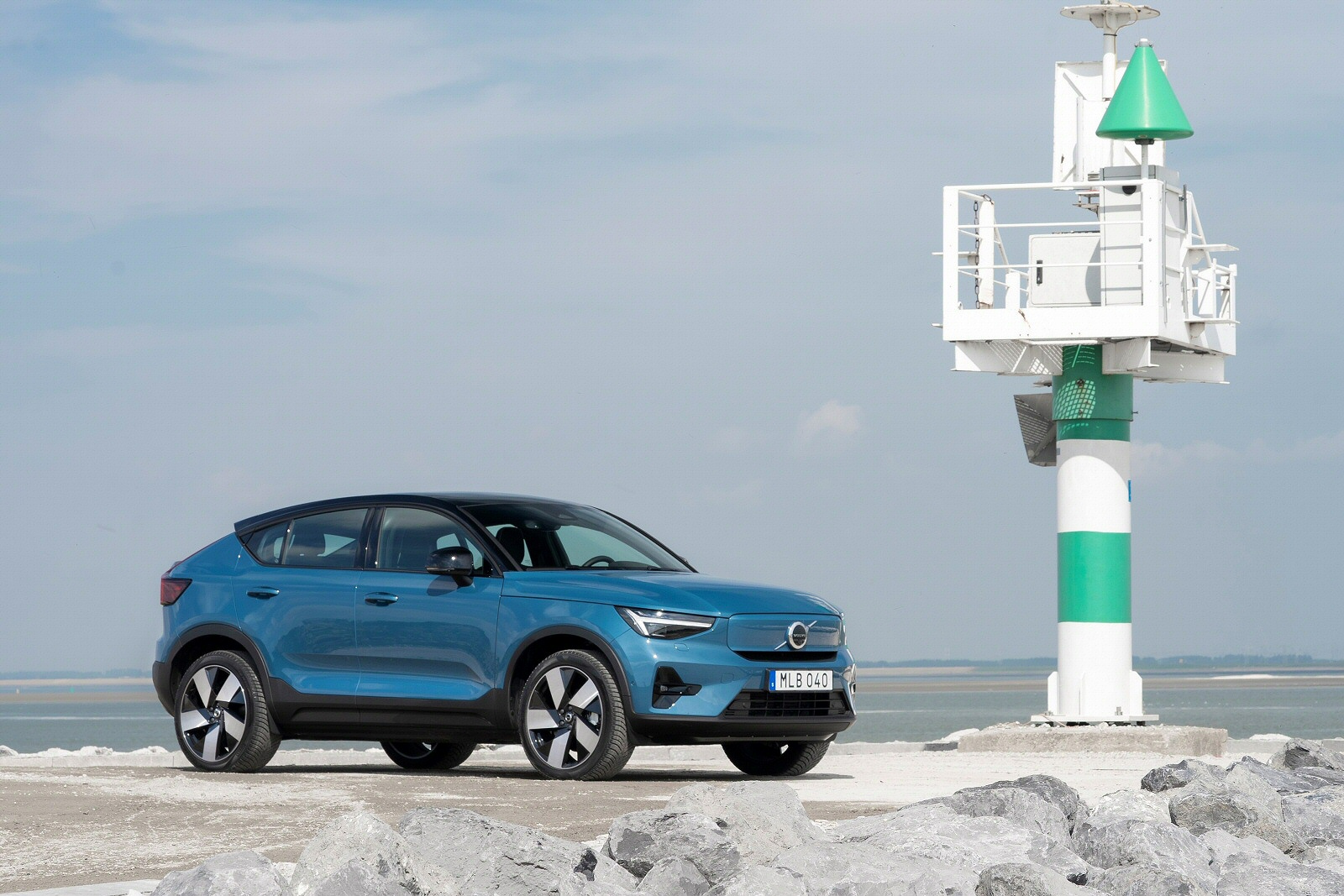

VOLVO C40 ESTATE

300kW Recharge Twin Ultimate 82kWh 5dr AWD Auto

Key Information

See all vehicle information

Electric Range
Range 316 miles
Battery Size
Battery Size 82 kWh
Stopwatch
0 - 62mph 4.70 seconds

Customise Your Lease

Add Options / Extras

Exterior Features

Interior Features

Paintwork

Trim

Deal Summary

Contract Type
Contract Length
Initial Rental
Annual Miles
Vehicle Maintenance
Processing Fee
Balloon Payment
Additional Extras

Fetching your price

Key Information

Electric Range
Range 316 miles
Real World Estimate
Real World Estimate 268 miles
Battery Size
Battery Size 82 kWh
Emissions
Co2 0.00 g/km
Connector Type
Rapid Charging Plug CCS
Connector Type
AC Plug Type Type 2
Stopwatch
0 - 62mph 4.70 seconds
No. of Seats
No. of Seats 5

Charging your Electric Vehicle

Charging at home

  • Charging time
  • Range added
  • Your charge cost
  • Cost per mile
Easee One

Get a home installation estimate in 2 minutes

Charging on the road

GRIDSERVE Electric Highway

  • Latest EV charging technology
  • Contactless payment facilities
  • 24/7 customer service backup
  • Powered by sustainable energy
See our charging locations
GRIDSERVE Electric Highway GRIDSERVE Electric Highway

Full Specification

This data is pulled directly from the CAP-HPI database - Ref# 102058

Standard Equipment

Technical Data

Home Charger

Driver Convenience

  • 12.3" Progressive Driver Display
  • 360 degree surround view parking camera with side proximity sensors
  • 9" centre console portrait touch screen
  • Adjustable steering wheel force
  • Bluetooth handsfree system
  • Driver alert control with lane keeping aid
  • Driver assistance (pilot assist and adaptive cruise control)
  • Driver awareness - Blind spot information system with steer assist, cross traffic alert with autobrake and rear collision warning and mitigation
  • Emergency services call system
  • Front park assist
  • Google automatic services - Nav with google maps, apple carplay/android auto, voice recognition with google assistant
  • Hands free power tailgate
  • Oncoming Lane Mitigation
  • Rear park assist
  • Speed limiter
  • Speed sensitive steering
  • Volvo cars services with app
  • Volvo on call with charge station locations and route planning and pre climatisation
  • Wired Apple CarPlay
  • Wireless/Inductive Mobile Phone Charging

Engine/Drivetrain/Suspension

  • 11 kW AC onboard charger
  • 6m 3 phase 32 amp type 2 / mode 3 charge cable
  • 7m 10amp Charge Cable with 3 Pin Plug
  • Electric front and rear axle drive
  • Lithium-ion battery
  • Recharging port located in nearside rear wing
  • Touring chassis

Entertainment

  • DAB Digital radio
  • Low speed exterior sound speaker
  • Premium Sound by Harman Kardon, Dolby Pro Logic II Surround Sound, Dirac Unsion,12 speakers/600W and subwoofer
  • Steering wheel remote infotainment controls

Exterior Features

  • Active bending pixel LED headlights with adaptive shadow technology
  • Adaptive brake lights with high level LED brake lights
  • Auto dimming exterior rear view mirror
  • Auto dimming interior mirror
  • Automatic headlamp levelling
  • Black stone boot spoiler
  • Black stone door mirrors
  • Black stone roof
  • Body colour pillars
  • Body colour roof spoiler
  • Colour co-ordinated front grille and surround
  • Dark tinted windows for rear door side windows and cargo compartment
  • Electric adjustable/heated/auto folding door mirrors
  • Fixed panoramic glass sunroof
  • Front and rear electric windows
  • Front intermittent wipers
  • Front recharge tread plates
  • Headlight cleaning system
  • High gloss black rear bumper lower deco
  • High gloss black window trim
  • Home safe and approach lighting
  • LED daytime running lights
  • LED front fog lamps with cornering function
  • Puddle lights
  • Rain sensor with automatic windscreen wiper activation
  • Rear side wing doors
  • Rear wiper
  • Roof antenna
  • Visible VIN plate

Interior Features

  • 12V socket in front tunnel console
  • 2 zone electronic climate control and rear air vent with clean zone air quality system and pollen filter
  • 3 bench rear seats in 2nd row
  • 3 spoke sports tailored steering wheel
  • 60/40 versatile split folding rear seat
  • A-pillar parking ticket holder
  • Ambient front door and instrumental panel lighting
  • Bright metal luggage compartment threshold
  • Centre console cupholders and storage
  • Charcoal headlining
  • Charcoal lower dashboard, upper tunnel console and armrest
  • Flexible load floor and grocery bag holder
  • Floor mats
  • Front door pocket and front cupholder illumination
  • Front door pocket, front cupholder, ambient front door, rear reading, rear courtesy, instrument panel and tailgate lighting
  • Front footwell illumination
  • Front headrests
  • Front load compartment (31 litres)
  • Front reading light and theatre lighting
  • Front seat cushion extensions
  • Front tunnel net pocket and integrated waste bin
  • Glovebox bag hook
  • Heat pump (Enhanced cabin heating and cooling efficiency with optimal vehicle range)
  • Heated front seats
  • Height/reach adjustable steering column
  • High gloss black centre tunnel and centre screen surround deco
  • Illuminated glovebox
  • Illuminated luggage compartment
  • Illuminated tailgate
  • Illuminated vanity mirrors + ticket holder
  • Load protection net
  • Multi directional lumbar support
  • One pedal drive mode
  • Power driver seat with memory + exterior mirrors memory
  • Power folding rear headrests
  • Power passenger seat
  • Rear armrest with cupholder
  • Single front passenger seat
  • Underfloor cargo storage

Packs

  • Climate pack - C40/XC40

Passive Safety

  • 3x3 point rear seatbelts
  • City safety includes pedestrain and cyclist detection, front collision warning with full and rear auto brake
  • Drivers knee airbag
  • Dual stage driver/passenger airbags
  • First aid kit
  • Front and outer rear seatbelt reminder and pretensioners
  • Front seats SIPS airbags
  • Hill descent control
  • Hill start assist
  • IC (Inflatable Curtains) - Full Length
  • ISOFIX attachment (Front passenger and Rear outer seats)
  • Passenger airbag cut-off device
  • Power child locks on rear doors
  • Road sign information display
  • Run off Road Mitigation
  • Run off Road Protection
  • SIPS (Side Impact Protection System)
  • Slippery road and hazard light alert
  • Stability and traction control includes spin control and corner traction control
  • Tyre pressure monitoring system
  • Vehicle deceleration control with Anti-lock Brake System, Electronic Brake Distribution and Emergency Brake Assist
  • Warning triangle
  • WHIPS whiplash protection system - front

Security

  • 2 x Key integrated remote control central locking including recharging port with deadlocking system and auto open/close power windows and sunroof
  • Anti-theft alarm including immobiliser/volume sensor + level sensor
  • Care key with user defined top speed
  • Convenient entry and start
  • Keyless drive with keyless entry and keyless start
  • Locking wheel nuts
  • Private locking for tailgate

Wheels

  • 20" 5 spoke diamond cut black alloy wheels
  • All season tyres
  • Tyre sealant kit + 12v compressor

Electric Vehicle Data

  • Battery Capacity % guaranteed under warranty
    Not Available
  • Battery Capacity in kWh
    82
  • Battery Charging Scenario 1 - Charge Time (Mins)
    2520
  • Battery Charging Scenario 1 - Percentage Change
    0-100
  • Battery Charging Scenario 1 - Power Supply - kW
    2.3
  • Battery Charging Scenario 2 - Charge Time (Mins)
    1500
  • Battery Charging Scenario 2 - Percentage Change
    0-100
  • Battery Charging Scenario 2 - Power Supply - kW
    3.7
  • Battery Charging Scenario 3 - Charge Time (Mins)
    780
  • Battery Charging Scenario 3 - Percentage Change
    0-100
  • Battery Charging Scenario 3 - Power Supply - kW
    7.4
  • Battery Charging Scenario 4 - Charge Time (Mins)
    28
  • Battery Charging Scenario 4 - Percentage Change
    10-80
  • Battery Charging Scenario 4 - Power Supply - kW
    200
  • Battery Leased
    No
  • Battery Type
    Lithium-ion
  • Charging Port Location
    Left Side Rear
  • Coupler/Connector Type
    Type 2
  • Maximum Charging Rate - kW
    200
  • Standard manufacturers Battery warranty - Mileage
    100000
  • Standard manufacturers Battery warranty - Years
    8
  • Usable Battery Capacity
    79
  • WLTP - EC (kWh/100km) - Comb - TEH
    21
  • WLTP - EC (kWh/100km) - Comb - TEL
    17.6
  • WLTP - EC (miles/kWh) - Comb - TEH
    3.0
  • WLTP - EC (miles/kWh) - Comb - TEL
    3.5
  • WLTP - Pure Electric Range (km) - Comb
    543
  • WLTP - Pure Electric Range (km) - Comb - TEH
    424
  • WLTP - Pure Electric Range (km) - Comb - TEL
    550
  • WLTP - Pure Electric Range (miles) - Comb
    337.4
  • WLTP - Pure Electric Range (miles) - Comb - TEH
    263.5
  • WLTP - Pure Electric Range (miles) - Comb - TEL
    341.7

Emissions - ICE

  • CO
    Not Available
  • CO2 (g/km)
    0
  • HC
    Not Available
  • HC+NOx
    Not Available
  • Noise Level dB(A)
    Not Available
  • NOx
    Not Available
  • Particles
    Not Available
  • Standard Euro Emissions
    Not Available

Engine and Drive Train

  • Camshaft
    Not Available
  • Catalytic Convertor
    Not Available
  • CC
    1
  • Compression Ratio
    Not Available
  • Cylinder Layout
    Not Available
  • Cylinders
    Not Available
  • Cylinders - Bore (mm)
    Not Available
  • Cylinders - Stroke (mm)
    Not Available
  • Engine Code
    Not Available
  • Engine Layout
    Not Available
  • Fuel Delivery
    Not Available
  • Gears
    1 SPEED
  • Number of Valves
    Not Available
  • Transmission
    AUTO

Fuel Consumption - ICE

  • EC Combined (mpg)
    Not Available
  • EC Directive 1999/100/EC Applies
    No
  • EC Extra Urban (mpg)
    Not Available
  • EC Urban (mpg)
    Not Available

General

  • Alternative Fuel Qualifying
    Yes
  • Badge Engine CC
    0.0
  • Badge Power
    408
  • Based On ID
    Not Available
  • Coin Description
    Recharge 300kW
  • Coin Series
    Twin Ultimate
  • Generation Mark
    1
  • Insurance Group 1 - 50 Effective January 07
    42E
  • Manufacturers Corrosion Perforation Guarantee - Years
    12
  • Manufacturers Paintwork Guarantee - Years
    3
  • NCAP Adult Occupant Protection %
    92
  • NCAP Child Occupant Protection %
    89
  • NCAP Overall Rating - Effective February 09
    5
  • NCAP Pedestrian Protection %
    70
  • NCAP Safety Assist %
    89
  • Did at least one aspect of this vehicle's safety give cause for concern?
    No
  • Service Interval Frequency - Months
    24
  • Service Interval Mileage
    18000
  • Special Edition
    No
  • Special Order
    No
  • Standard manufacturers warranty - Mileage
    60000
  • Standard manufacturers warranty - Years
    3
  • Timing Belt Interval Frequency - Months
    Not Available
  • Timing Belt Interval Mileage
    Not Available
  • Vehicle Homologation Class
    M1

Performance

  • 0 to 62 mph (secs)
    4.7
  • Engine Power - BHP
    408
  • Engine Power - KW
    300
  • Engine Torque - LBS.FT
    494
  • Engine Torque - MKG
    68.3
  • Engine Torque - NM
    670
  • Engine Torque - RPM
    Not Available
  • Top Speed
    112

Test Cycles

  • Emissions Test Cycle
    WLTP
  • RDE Certification Level
    N/A

Tyres

  • Alloys?
    Yes
  • Space Saver?
    No
  • Tyre Size Front
    235/45 R20
  • Tyre Size Rear
    255/40 R20
  • Tyre Size Spare
    TYRE REPAIR KIT
  • Wheel Style
    5 SPOKE
  • Wheel Type
    20" ALLOY

Vehicle Dimensions

  • Height
    1596
  • Height (including roof rails)
    Not Available
  • Length
    4440
  • Wheelbase
    2702
  • Width
    1910
  • Width (including mirrors)
    2034

Weight and Capacities

  • Fuel Tank Capacity (Litres)
    Not Available
  • Gross Vehicle Weight
    2620
  • Luggage Capacity (Seats Down)
    1205
  • Luggage Capacity (Seats Up)
    413
  • Max. Loading Weight
    510
  • Max. Roof Load
    75
  • Max. Towing Weight - Braked
    1800
  • Max. Towing Weight - Unbraked
    750
  • Minimum Kerbweight
    2110
  • No. of Seats
    5
  • Turning Circle - Kerb to Kerb
    11.4

Easee One

In Partnership with

Smart Home Charge

The Easee One is our best-seller and for good reason. An unfussy and elegant design combined with its ability to work in tethered or untethered mode - lock the cable in place for ease of access or unplug it for a cleaner look when not in use.

Beautifully compact

The Easee One is one of the best-looking and most versatile EV chargers available today, while also managing to remain impressively small and discreet.

Dimensions - H256 x W193 x D106mm

Universal charging

Thanks to the Easee One's smart design and app, you no longer need to choose between tethered or untethered EV chargers - the Easee does both! Prefer a tethered charger (cable permanently attached)? No problem, simply plug the cable into the Easee One and lock the cable in via the Easee app. If you want the flexibility of an untethered unit (no cable attached), then just remove the cable and plug it in at your own leisure.

This also means the Easee One will work with any EV out of the box.

Easee 7.5m branded cable sold separately (£240). Other branded cables are also available from Smart Home Charge in 5m (£142.00) or 10m (£174.00) from our accessories store.

WiFi and mobile data

Easee One connects to the internet through its in-built WiFi connection. This enables over-the-air updates to add new features and make improvements over time. It also includes a 4G mobile connection for improved internet connectivity and reliability.

Extra colours

The Easee One is available with three colour options as standard: Black, White, and Anthracite Grey

You can purchase other faceplate colours, such as Blue or Red direct from Easee for £35.00 and these are easily swapped.

7kW power output

The Easee One is capable of charging your vehicle at up to 7kW, which will provide around 30 miles of range per hour depending on your vehicle.

Cable security

You can permanently lock your cable into the Easee, removing the fear that someone might remove it.

An Easee branded cable can be bought separately (£240) or you can buy different branded 5m and 10m cables from Smart Home Charge.

Built-in earthing protection

Some charge points require the installation of a copper earth rod, or alternative device, at your property for safety reasons. But this can also add complexity and extra cost to the job. The Easee One avoids the need for this thanks to its built-in PEN fault detection feature.

Future proofed

Easee One can be easily expanded as your EV household grows by "daisy-chaining" up to three chargers. The Easee One will share power evenly between up to three units on the same circuit, so your EVs get their fair share of charge.

From £979

* opens SmartHomeCharge Installation Estimate tool.

Standard Equipment

Technical Data

Home Charger

You May Also Like...

In Stock Special Offer
3 months' charging included*

AUDI Q4 E-TRON ESTATE

Sport 40 | 82 kWh

Range
WLTP Range* 321 miles
Range
Real World Est. 273 miles
Battery Size
Battery Size 83 kWh

Price Per Month (inc. VAT) £564.42

Price Per Month (exc. VAT) £470.35

View deal
Special Offer
3 months' charging included*

KIA EV6 ELECTRIC ESTATE

166kW Air 77.4kWh 5dr Auto

Range
WLTP Range* 328 miles
Range
Real World Est. 279 miles
Battery Size
Battery Size 77 kWh

Price Per Month (inc. VAT) £492.29

Price Per Month (exc. VAT) £410.24

View deal
3 months' charging included*

PORSCHE TAYCAN CROSS TURISMO

350kW 4 93kWh 5dr Auto

Range
WLTP Range* 283 miles
Range
Real World Est. 241 miles
Battery Size
Battery Size 93 kWh

Price Per Month (inc. VAT) £1,051.56

Price Per Month (exc. VAT) £876.30

View deal
In Stock Special Offer
3 months' charging included*

GENESIS GV60 ESTATE

168kW Premium 77.4kWh 5dr Auto

Range
WLTP Range* 321 miles
Range
Real World Est. 273 miles
Battery Size
Battery Size 77 kWh

Price Per Month (inc. VAT) £725.16

Price Per Month (exc. VAT) £604.30

View deal

Tools & Calculators

We've made leasing an electric car easier than ever

Back to top

Answers and Information

As one of the UK's leading experts, we have used our knowledge to provide our customers with a trusted source for electric vehicles.
